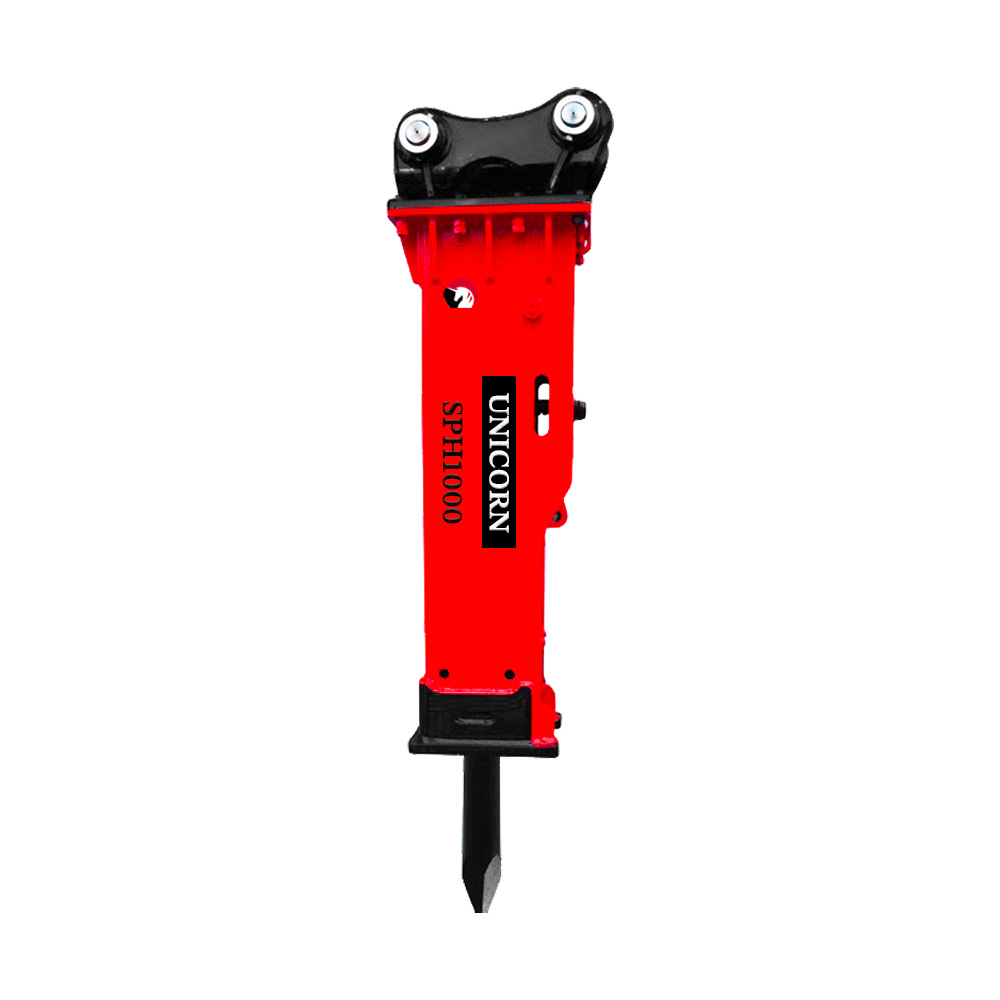

SPH1000
Features :
- High Power-to-Weight Ratio
- High Performance Efficiency
- Various Carrier Suitable
- Labor and Costs Reduction
- Minimized Environmental Impact
- Safety Operation
Application :
- Infrastructure Construction
- Materials Secondary Demolition
- Qarrying and Mining
- Marine Construction
- Emergency Rescue
- Specialized Applications
Specification :
|
CATEGORY |
UNIT |
SPH1000 |
|
Carrier weight |
ton |
11-16 |
|
Tool diameter |
mm |
φ100 |
|
Operating weight |
kg |
979 |
|
Height |
mm |
2316 |
|
Required oil flow |
I/min |
80-110 |
|
Operating pressure |
bar |
150-170 |
|
Impact rate |
bpm |
350-700 |
|
Hose diameter |
mm |
3/4 |
|
Back head pressure |
kg/cm² |
16 |
|
Accumulator pressure |
kg/cm² |
/ |
|
Valve ass'y position |
|
Internal |
Carrier :
|
Brand |
Model |
|
CAT |
212 213 214 E110 |
|
KOMATSU |
PC120 PC150 PW150 |
|
DOOSAN DAEWOO |
DH130 DH130W DH150 DH170 |
|
HYNUDAI |
RB130-7 RB175 |
|
HITACHI |
ZX100 ZX130W ZX150 ZX100WD ZX160WD |
|
KOBELCO |
SK100 SK120 |
|
VOLVO |
EC120 EC140 |
|
KUBOTA |
161 185 |
|
SANY |
SY135C-8 SY155H |
|
YUCHAI |
YC135 |
|
STRONG |
JCM916D GC138 JCM913D MC136-9 |
|
LINGONG |
LG6150E |
|
FOTON |
170 |
|
XGMA |
140-8 |
|
SUNWARD |
SWE90/125/130/150 |
|
ZOOMLION |
ZE150E |
|
XCMG |
150 |
Hydraulic breaker is a powerful demolition equipment commonly used in construction, mining, and quarrying activities.
It's typically attached to heavy machinery such as excavators or backhoes.
